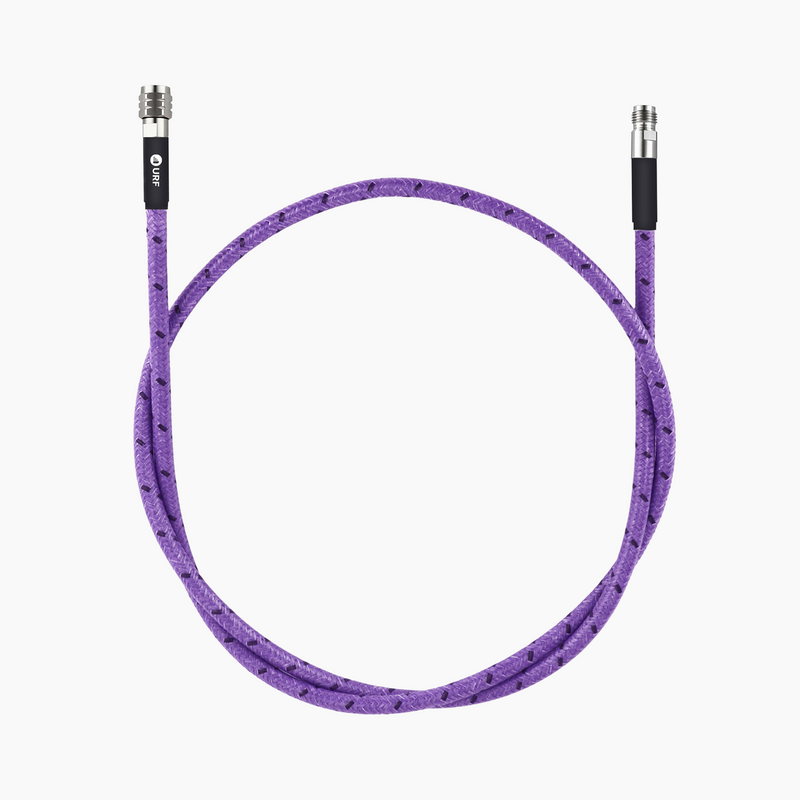

DC-67GHz 36" Armoured Flexible Low-Loss Test Cable, 1.85mm Male-Female

DC-67GHz 36" Armoured Flexible Low-Loss Test Cable, 1.85mm Male-Female

SKU ST67-141-142-36-02
Availability:
20 in stock, ready to be shipped
$1,300.00 - $1,300.00
$1,300.00
$1,300.00 - $1,300.00
$1,300.00

Insertion Loss: 6.1dB typ, 6.4dB max @67GHz

VSWR: 1.23:1 typ, 1.35:1 max @67GHz

Shielding Effectiveness: >100dB

Phase Change vs Flexure: <±3° @67GHz

Amplitude Change vs Flexure: <±0.15dB @67GHz

Min Bending Radius: 30mm

Pack Size: 2 Pack

WHY CHOOSE THIS CABLE?

  • ✔ Low Loss & High Stability – 6.1dB typ, 6.4dB max insertion loss @67GHz ensures minimal signal degradation.
  • ✔ Superior VSWR – 1.25:1 typ, 1.35:1 max @67GHz for optimized impedance matching.
  • ✔ Robust Shielding – >100dB shielding effectiveness minimizes external interference.
  • ✔ Exceptional Stability – Phase Change vs Flexure: <±3° @67GHz, Amplitude Change vs Flexure: <±0.15 dB @67GHz
  • ✔ Reinforced Durability – Multilayer armor resists compression, torsion, and abrasion.
  • ✔ Flexure-Optimized – Maintains stable performance under movement with 30mm min bend radius.

PRODUCT OVERVIEW

Our DC–67GHz 36-Inch Ultra-Flexible Low-Loss Test Cable, 1.85mm Male-Female, delivers high stability, low insertion loss, and exceptional shielding for mmWave and RF testing. Engineered with precision stainless steel connectors, reinforced armor, and ultra-low VSWR (1.25:1 typ / 1.35:1 max @67GHz), it ensures reliable, repeatable results. The cable withstands extreme conditions (phase vs flexure: <±3°, amplitude vs flexure: <±0.15dB @67GHz, temp: -55~+85°C) and flexing, with only 30mm min bending radius. Ideal for production lines, OTA testing, and high-frequency lab environments.


SPECIFICATIONS

Frequency Range

DC–67GHz

Insertion Loss

6.1dB typ / 6.4dB max @67GHz

VSWR

1.25:1 typ / 1.35:1 max @67GHz

Shielding Effectiveness

>100dB

Amplitude Change vs Flexure

±0.15dB max @67GHz

Phase Change vs Flexure

±3° max @67GHz

Power Handling (at 40°C)

12W @67GHz / 115W @1GHz

Cable Diameter

5.0mm

Bending Radius

30mm min

Operating Temperature

-55~+85°C

Storage Temperature

-55~+85°C


APPLICATIONS

Lab and Production Line Test

Reliable for signal integrity checks in QA, prototyping, and manufacturing workflows.

5G Massive MIMO and Antenna OTA Test

Optimized for mmWave and multi-antenna system validation.

5G Switch and Attenuator Matrices Systems

Supports flexible routing and signal control at high frequencies.

Phase Array Test Systems

Enables phase-coherent evaluation and beamforming validation for multi-channel RF setups.

RF/Microwave Test Systems

Suitable for advanced RF validation across ultra-wideband frequencies.

High-Frequency Calibration and Verification

Ideal for precise calibration, delay matching, and measurement system verification at mmWave frequencies.
