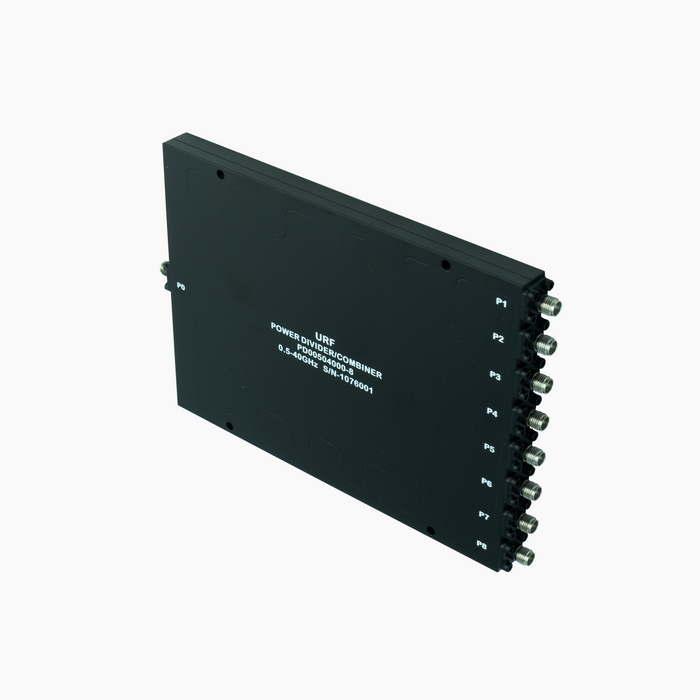

8-Way Power Divider/Combiner, 0.5-40GHz, 2.92mm Female

8-Way Power Divider/Combiner, 0.5-40GHz, 2.92mm Female

SKU PD00504000-8
Availability:
8 in stock, ready to be shipped
Availability:
Only 1 left!
$4,500.00 - $17,460.00
$4,500.00
$4,500.00 - $17,460.00
$4,500.00

Wide Frequency Range: 0.5–40 GHz, DC-Capable

Low VSWR: 1.15:1 typ, 1.70:1 max

Low Insertion Loss: 11dB max

High Isolation: 15dB min

Amplitude Unbalance: ±0.6dB max

Phase Unbalance: ±8° max

Power: 20W CW FOR, 2W REV, 3000W peak max

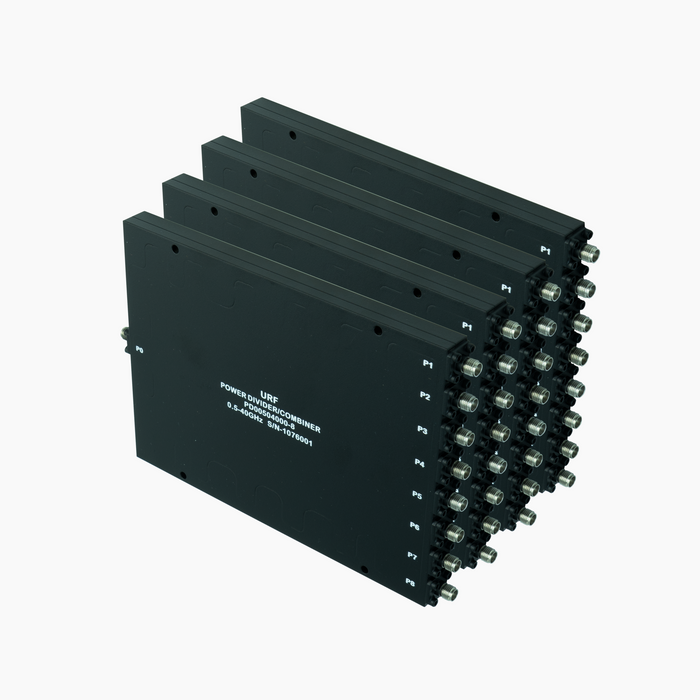

Pack Size: 1 Pack

WHY CHOOSE THIS POWER DIVIDER?

  • ✔ Broad Frequency Range – 0.5–40 GHz, with DC-capable operation for maximum versatility.
  • ✔ Low Insertion Loss – 11dB max for efficient power transfer.
  • ✔ Optimized Matching – 1.15:1 typ, 1.70:1 max for minimal signal reflection.
  • ✔ High Isolation – 15dB min reduces interference.
  • ✔ Precision Balance – Amplitude unbalance of ±0.6dB max, phase unbalance of ±8° max for consistent signal across all ports.
  • ✔ Reliable Power Handling – Supports 20W CW, 2W reverse, 3000W peak for demanding use cases.

PRODUCT OVERVIEW

The 8-Way Power Divider/Combiner, 0.5–40GHz, 2.92mm Female ensures stable signal splitting with with 8 output signals at a low insertion loss (11dB max), high isolation (15dB min), and low VSWR (1.15:1 typ, 1.70:1 max). Designed for 20W CW, 2W reverse, and 3000W peak handling, it delivers reliable performance across various RF applications. This divider ensures consistent signal distribution in both lab and field environments.


SPECIFICATIONS

Frequency Range

0.5-40GHz

Sum VSWR

1.70:1 max

Distribution Port VSWR

1.60:1 max

Insertion Loss¹

11dB max

Amplitude Unbalance

±0.6dB max

Phase Unbalance

±8° max

Isolation

15dB min

Power²

CW: FOR 20W, REV 2W; Peak: 3000W

Weight

720g

Dimension³

161.9mm x 120.0mm x 12.7mm (LxWxH)

Interface

Sum: 2.92mm [F], Distri.: 2.92mm [F]

Finishing

Polyurethane Paint

Operating Temperature

-55~+85°C

Storage Temperature

-55~+100°C

  1. Above Theoretical Loss 9dB
  2. VSWR ≤1.2 required for CW; Amp. & phase unbalance required for reversed input signals
  3. Unless otherwise specified, Decimal tolerance: x.±1; .x±0.5; .xx±0.1

APPLICATIONS

Testing & Measurement

Ensures accurate signal distribution in test setups.

Wireless Communication

Supports stable signal splitting for telecom and 5G applications.

Radar & Defense Systems

Enables efficient power division for radar arrays and defense electronics.
