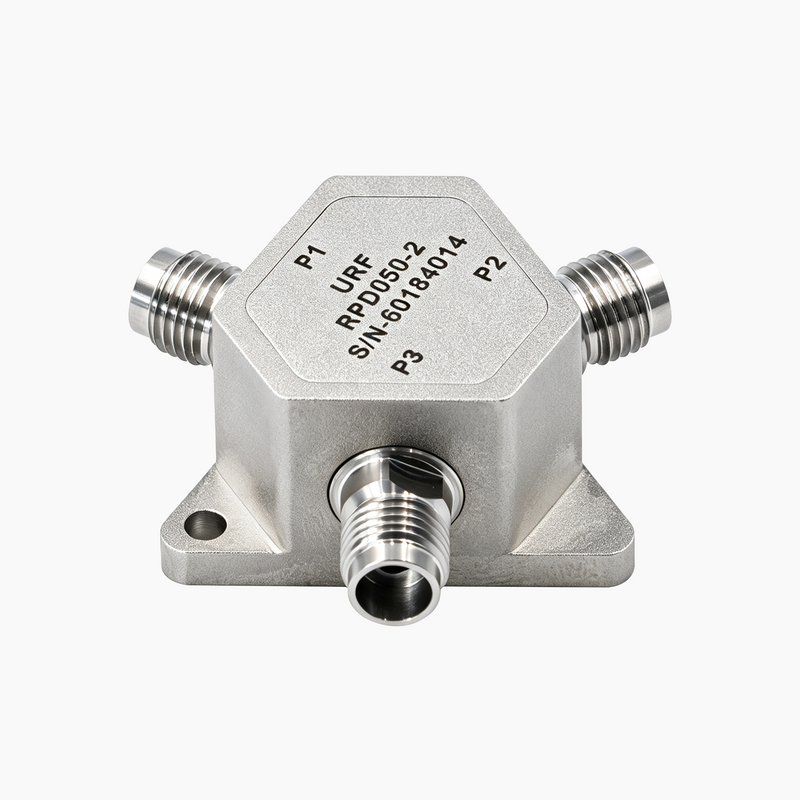

2-Way Resistive Power Divider, DC-50 GHz, 2.4mm Female

2-Way Resistive Power Divider, DC-50 GHz, 2.4mm Female

SKU RPD050-2
Availability:
Only 5 left!
Availability:
Only 2 left!
$1,350.00 - $6,550.00
$1,350.00
$1,350.00 - $6,550.00
$1,350.00

Low VSWR: 1.40:1 max

Amplitude Unbalance: ±0.5 dB max

Phase Unbalance: ±5° max

Power: 1 W max

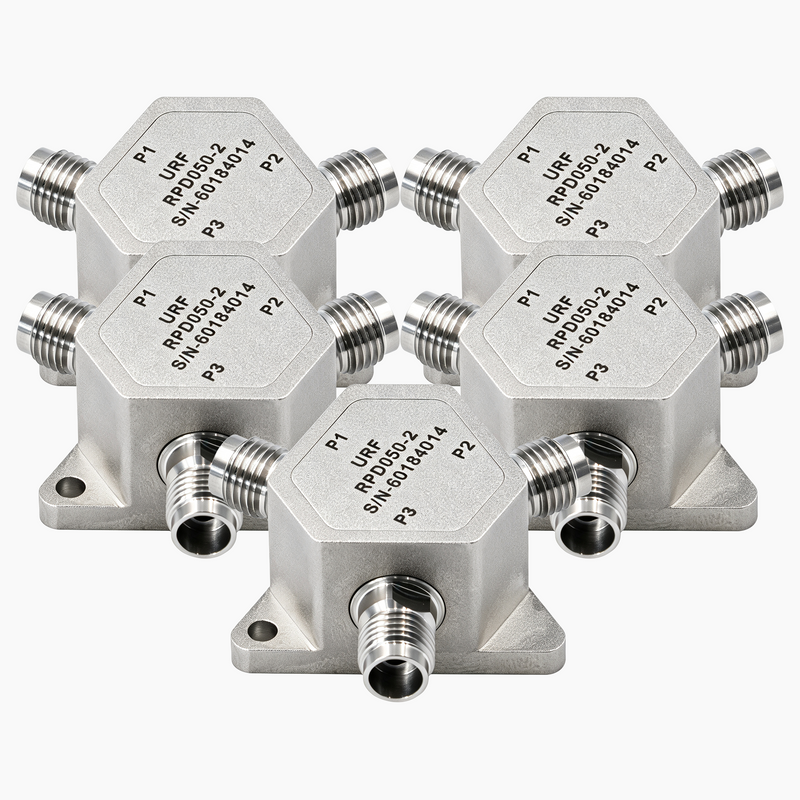

Pack Sizes: 1 Pack

WHY CHOOSE THIS POWER DIVIDER?

  • ✔ True DC-50GHz Coverage – One resistive divider spans DC to 50GHz without swapping hardware between bands.
  • ✔ Low VSWR – 1.4:1 max across the full band.
  • ✔ Flat Amplitude & Phase Balance – ±0.5dB amplitude, ±5° phase unbalance.
  • ✔ Compact, Rugged Build – Nickel-plated housing, 55g, rated -40°C to +70°C.

PRODUCT OVERVIEW

The 2-Way Resistive Power Divider, DC-50GHz, 2.4mm Female (RPD050-2) pushes true broadband splitting to the top of the mmWave range in a single part. Its 2.4mm interface holds single-mode performance to 50GHz. Flat balance (±0.5dB, ±5°), and 1.4:1 VSWR suitable for high-band mmWave test, E-band links, and upper 5G FR2 work.

Need less bandwidth? See the RPD020-2 (DC-20GHz, SMA) or RPD040-2 (DC-40GHz, 2.92mm).


SPECIFICATIONS

Frequency Range

DC to 50 GHz

VSWR

1.40:1 max

Insertion Loss¹

7.5 dB max

Amp. Unbalance

±0.5 dB max

Phase Unbalance

±5° max

Power²

1 W max

Weight

55 g max

Dimension³

26.5 mm x 30.0 mm x 16.5 mm (LxWxH)

Interface

2.4mm [F]

Finishing

Nickel Plating

Operating Temperature

-40 ~ +70°C

Storage Temperature

-55 ~ +85°C

  1. Above Theoretical Loss 6 dB
  2. VSWR ≤1.2 required for CW
  3. Unless otherwise specified, Decimal tolerance: x.±1; .x±0.5; .xx±0.1

APPLICATIONS

High-Band mmWave Test

Flat, repeatable splitting for test benches operating at the upper edge of mmWave.

E-Band & Upper 5G FR2

Single-part broadband coverage for E-band point-to-point links and the upper end of 5G FR2 signal chains.

Advanced Radar Systems

Low-reflection power division for radar systems needing wide instantaneous bandwidth into the 50GHz range.
