DC-110GHz 0.8mm to 1.0mm 4-Piece Adapter Kit

DC-110GHz 0.8mm to 1.0mm 4-Piece Adapter Kit

SKU A110G-0810-KIT
Availability:
Only 3 left!
$5,000.00 - $5,000.00
$5,000.00
$5,000.00 - $5,000.00
$5,000.00

Ultra Wideband: DC-110GHz

Low VSWR: 1.35:1 Max

Low Insertion Loss: 0.65dB Max

Long Durability: >1000 Cycles

Pack Sizes: 4-Piece Kit

WHY CHOOSE THIS KIT?

  • ✔ All-in-One – M-M, M-F, F-F, F-M adapters for flexible setups.
  • ✔ Excellent Performance – max VSWR at 1.35:1.
  • ✔ Quick Access – Organized kit saves time during testing.
  • ✔ Field-Ready – Ideal for engineers on the move.

PRODUCT OVERVIEW

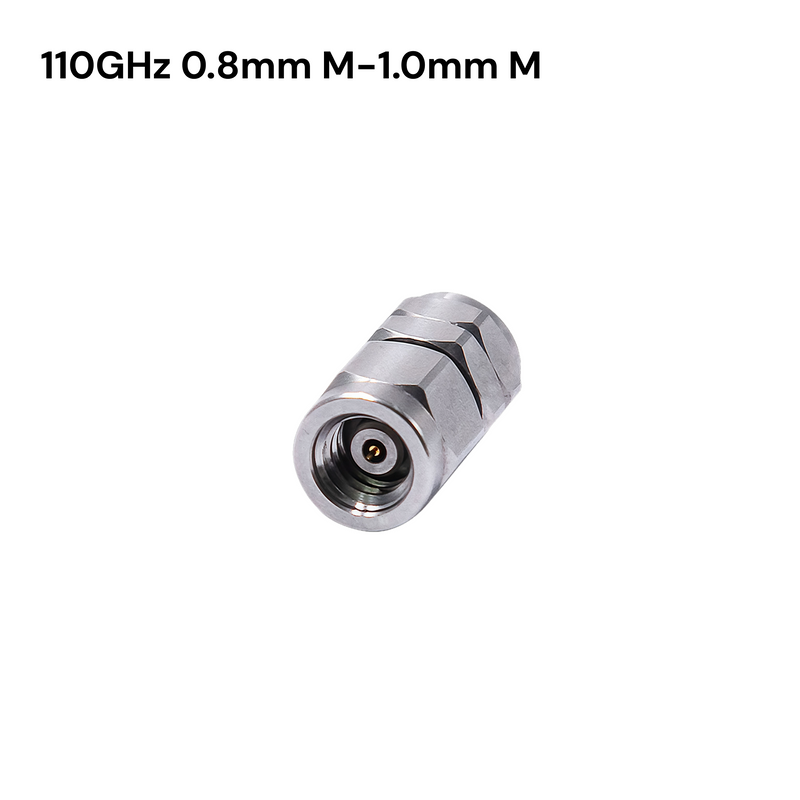

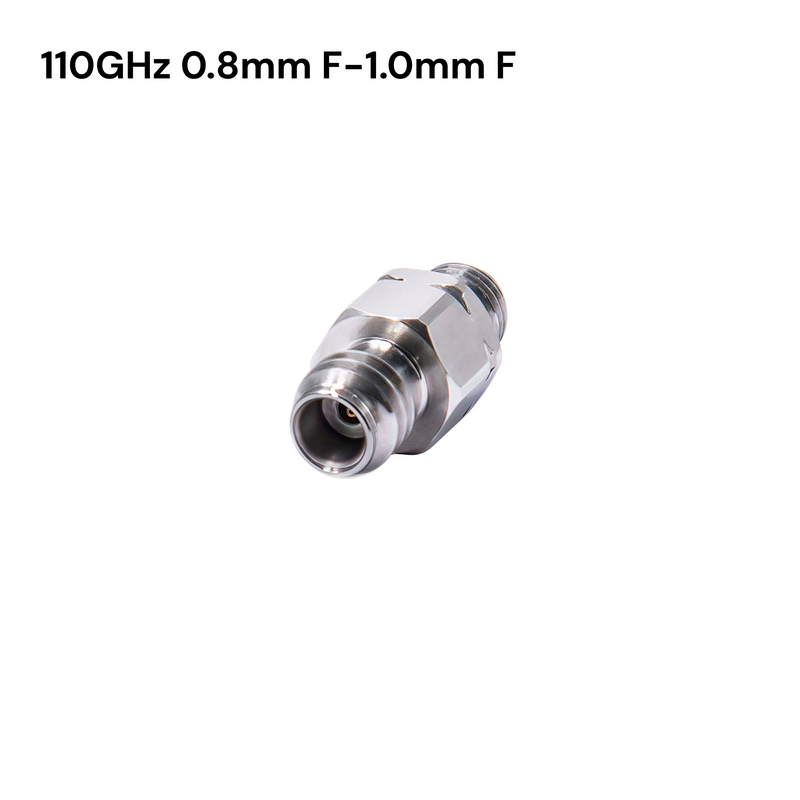

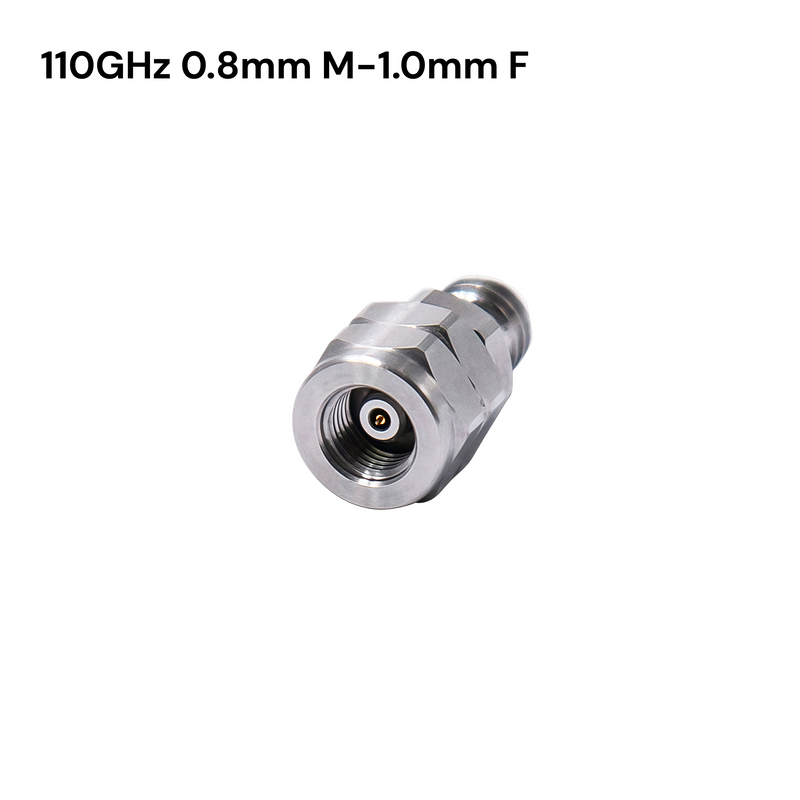

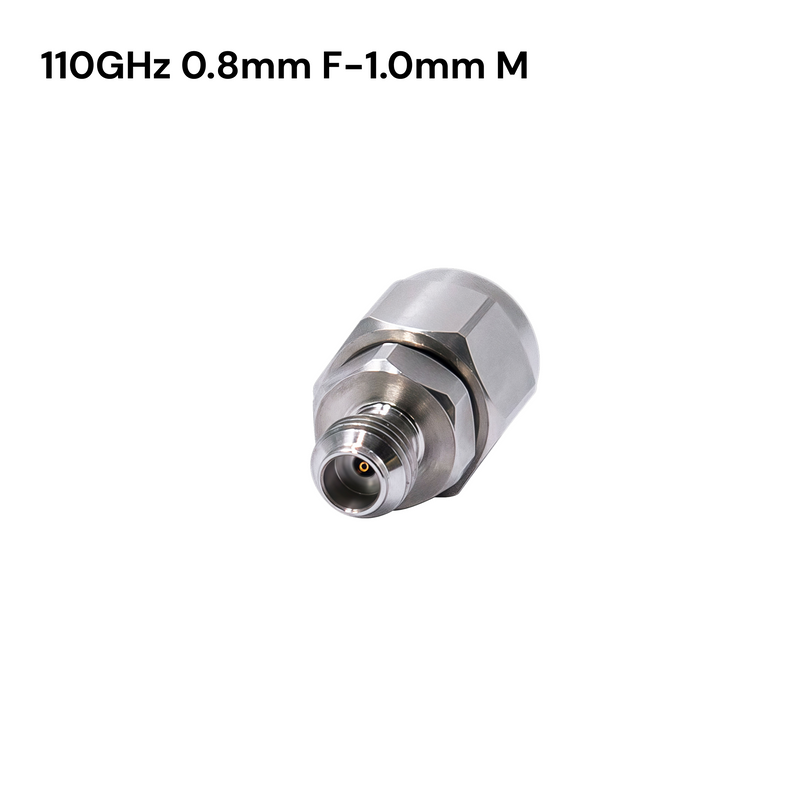

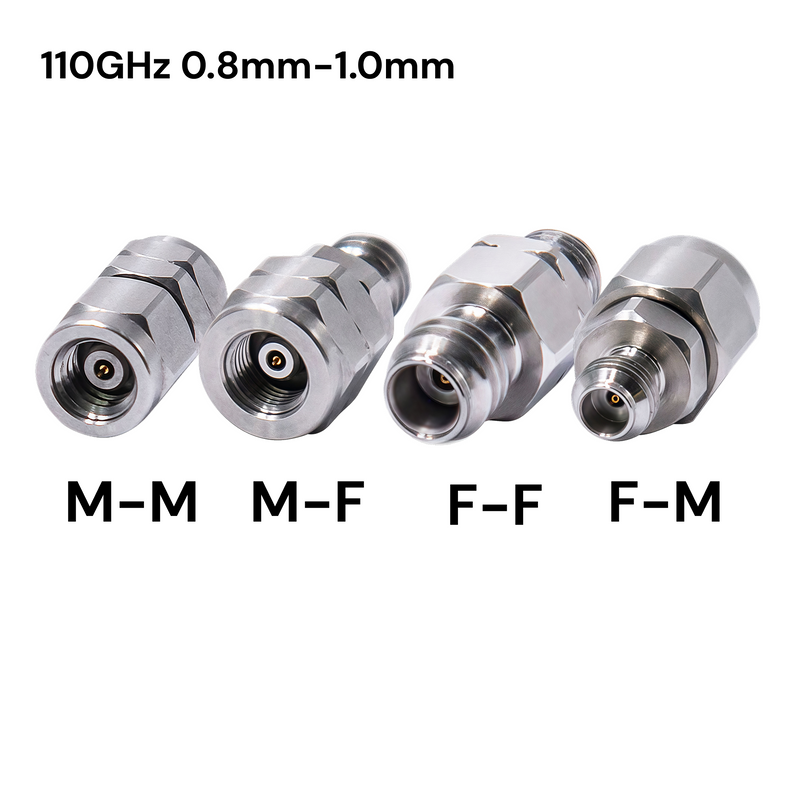

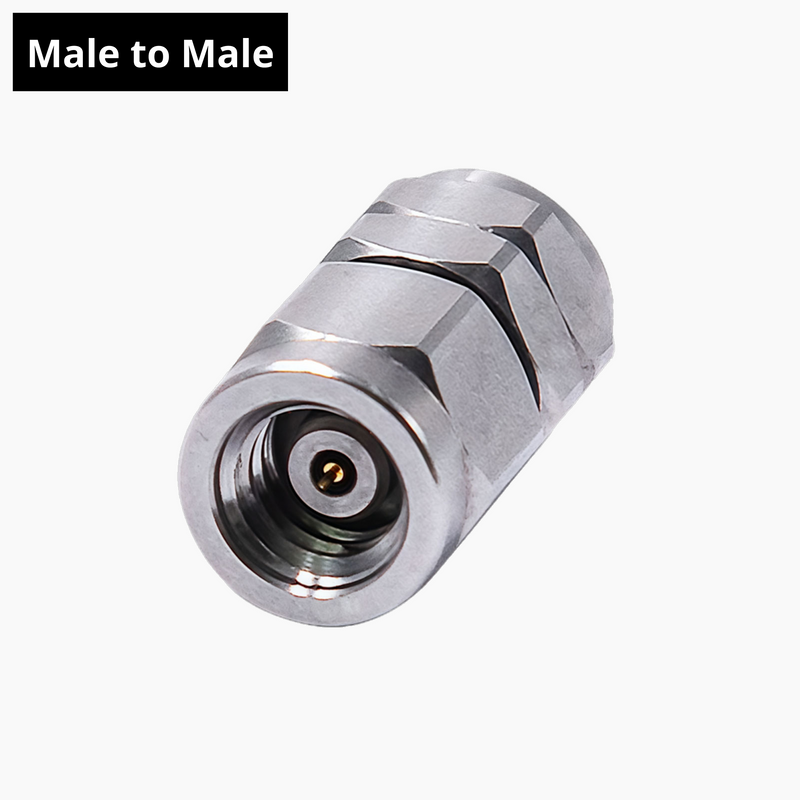

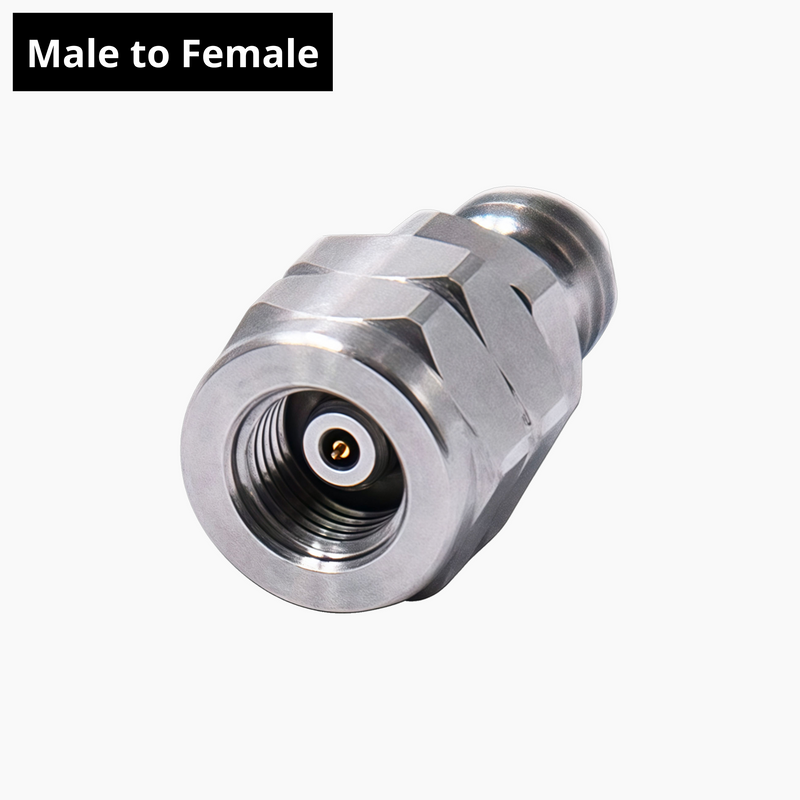

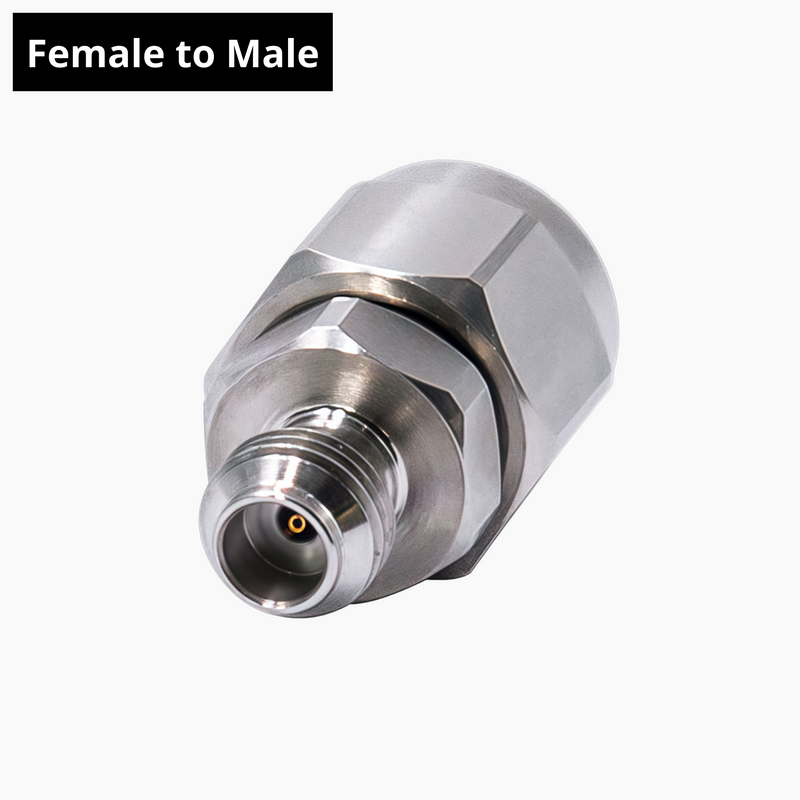

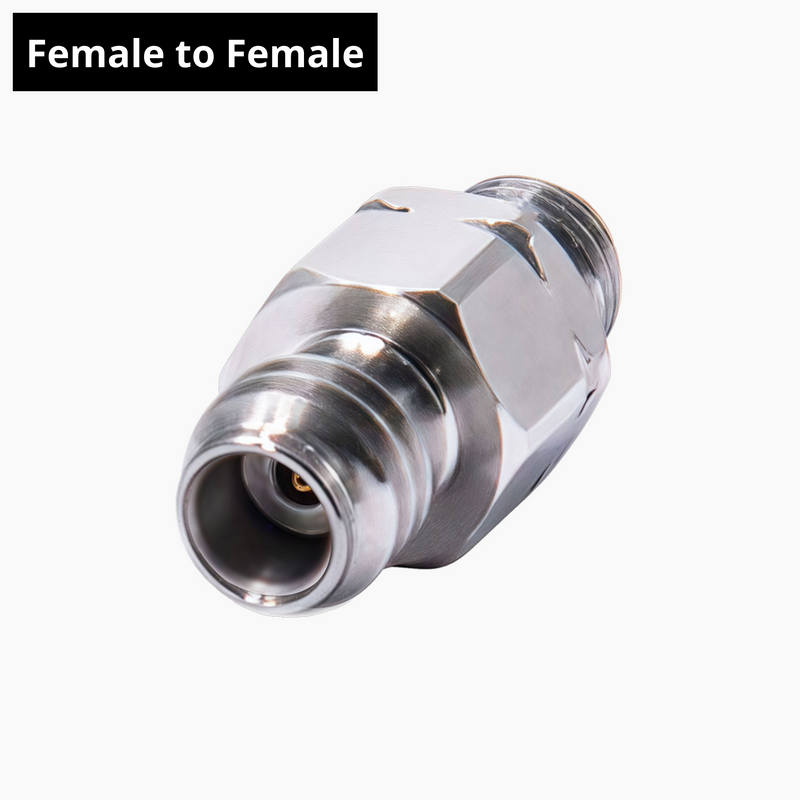

The DC-110GHz 4-Piece Adapter Bundle features the most common 0.8mm to 1.0mm configurations: 1 Male-Male, 1 Male-Female, 1 Female-Female, and 1 Female-Male. Perfect for lab testing, prototyping, or stocking versatile connections, this kit offers engineers a cost-effective, high-performance solution in one convenient package.


SPECIFICATIONS

Frequency Range

DC-110GHz

VSWR

1.35:1 max

Insertion Loss

0.65dB max

Durability

>1000 Cycles min

Insulation Resistance

>4000 MΩ min

Operating Temperature

-65°C ~ +165°C

Body Material

Stainless Steel Passivated

Center Conductor

Gold-Plated Beryllium Copper

Dielectric

PEI


APPLICATIONS

RF Testing & Development.

Ensures precise signal integrity for high-frequency measurements.

Telecom & Wireless Networks

Enables reliable high-speed data transmission and optimized signal routing in communication infrastructure.

Medical & Precision RF Devices

Supports sensitive RF applications requiring high accuracy.
