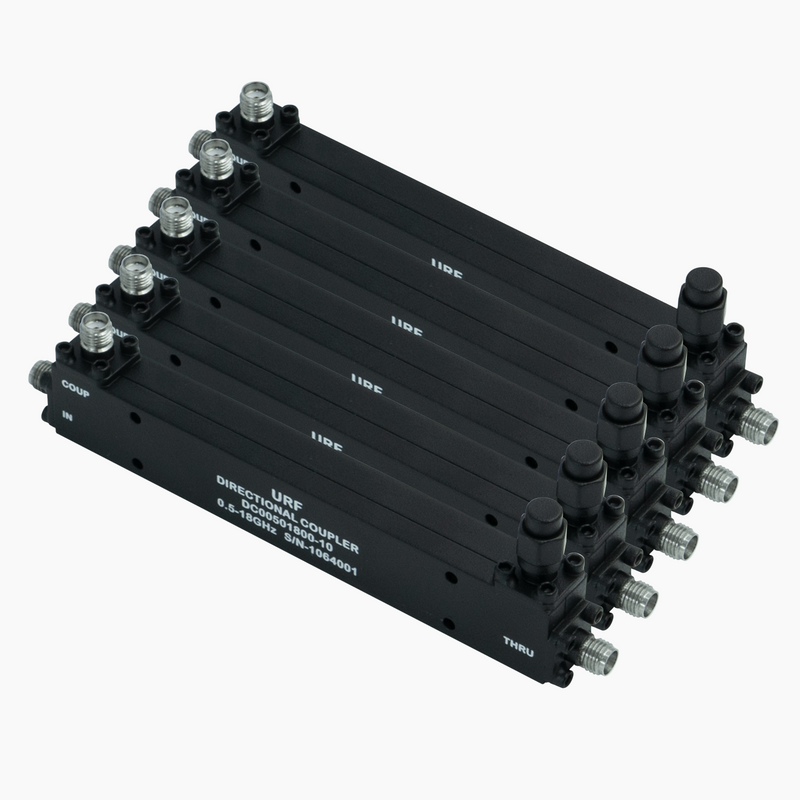

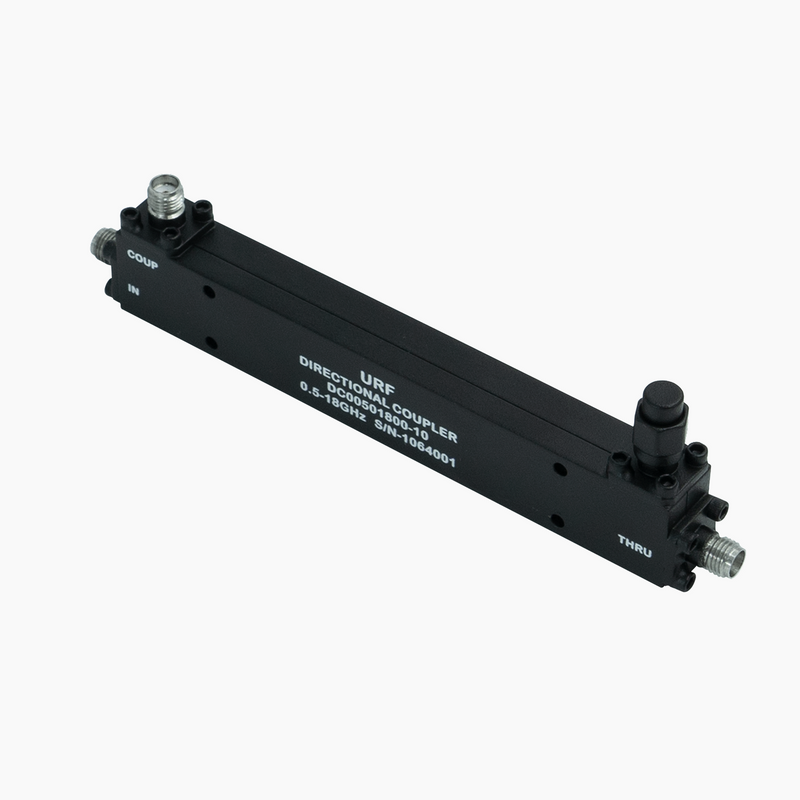

0.5-18GHz 10dB Directional Coupler

0.5-18GHz 10dB Directional Coupler

SKU DC00501800-10
Availability:
20 in stock, ready to be shipped
Availability:
Only 2 left!
$650.00 - $3,155.00
$650.00
$650.00 - $3,155.00
$650.00

Low VSWR: 1.10:1 typ, 1.30:1 max

Insertion Loss: 1.6dB max

Coupling: 10±0.7dB max

Flatness: ±0.8dB max

Directivity: 15dB min

Power: 30W CW max, 3000W peak max

DC Pass Capability: Yes

Pack Size: 1 Pack

WHY CHOOSE THIS DIRECTIONAL COUPLER?

  • ✔ Multi-Band Coverage – Operates from 0.5 to 18GHz, eliminating the need for multiple narrowband couplers.
  • ✔ Test Without Disruption – 10dB coupling enables accurate signal sampling or injection with minimal impact on the main signal path.
  • ✔ Ideal for High-Power Setups – Handles up to 30W continuous and 3000W peak, supporting power amplifier and antenna testing.
  • ✔ Built-In DC Pass – Bias active components directly without external bias tees or injectors.

PRODUCT OVERVIEW

Designed for wideband RF sampling, this 0.5–18GHz 10dB directional coupler delivers low-loss performance with up to 1.6dB insertion loss, ≥15dB directivity, and 1.30:1 max VSWR for low reflection and accurate monitoring. Rated for 30 W CW max and 3000 W peak, it’s a dependable choice for lab, production, and high power RF systems.


SPECIFICATIONS

Frequency Range

0.5-18GHz

Main Line VSWR

1.10:1 typ/1.30:1 max

Coupling VSWR

1.35:1 max

Insertion Loss¹

1.6dB max

Coupling

10±0.7dB max

Flatness

±0.8dB max

Directivity

15dB min

Power²

CW: 30W max; Peak: 3000W max

Weight

90g max

Dimension³

111.8x12.7x17.8mm (LxWxH)

Interface

Input: SMA [F], Thru.: SMA [F], Coup.: SMA [F]

Finishing

Polyurethane Paint

Operating Temperature

-55 ~ +85°C

Storage Temperature

-55 ~ +100°C

1. Theoretical 0.46dB included
2. VSWR ≤1.2 required for CW
3. Unless otherwise specified, decimal tolerance: x.±1; .x±0.5; .xx±0.1


APPLICATIONS

Testing & Measurement

Provides precise signal sampling for spectrum analyzers, network analyzers, and RF test setups.

Signal Monitoring

Enables real-time observation of signals without interrupting transmission.

Power Management

Ensures accurate power measurements and protects sensitive components from unwanted signals.
